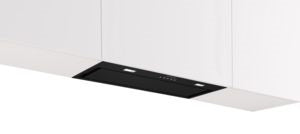

Bosch DLN77AC60B, Canopy cooker hood
Available to Order
2 Year Warranty
Key Features
Key Points From Manufacturer
Design: Canopy hood Installation: Cabinet Flush-fitted installation for a seamless integration in wall cupboards. Suitable for ducted or recirculating operation For recirculated extraction various recirculation kits are available as optional...
- High extraction rate - for continuously clean air in the kitchen.

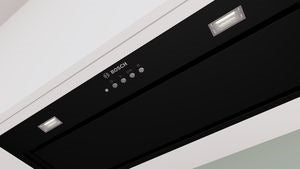

- LED Illumination: the energy-saving lighting provides a clear and bright illumination for your hob area.

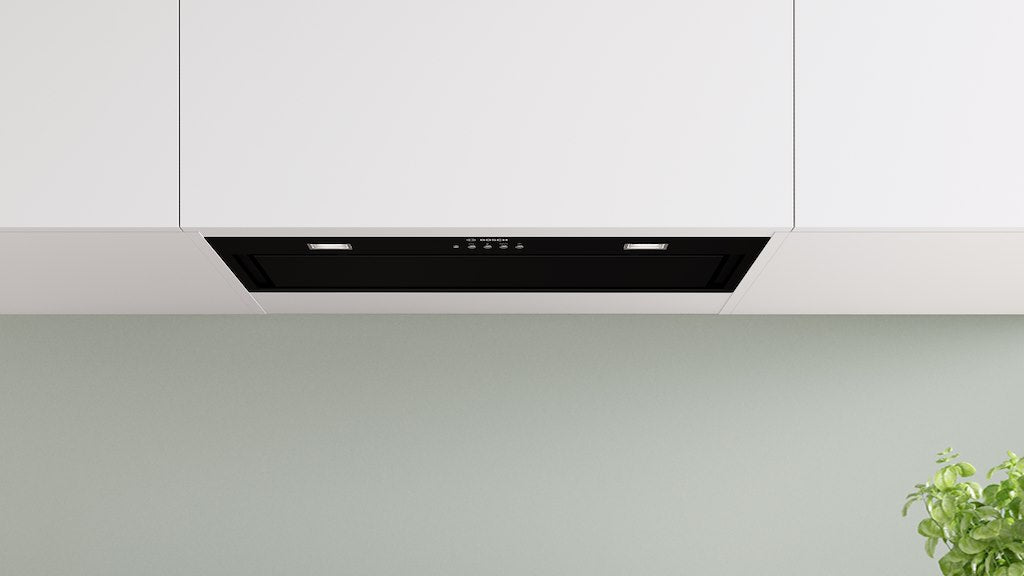

- Seamless integration: thanks to flush installation, the canopy hood is almost invisible in upper cabinets.
- Intensive Setting: the powerful way to beat intense steam during cooking.
General
| Manufacture name | Bosch |
| Colour Name | Black |
| Category name | Cooking > Hoods > Canopy Hoods > New |
| Consumer item width | 700 mm |
| Consumer item depth | 282 mm |
Key Features
Defrost Type
Capacity
Efficiency
| Energy Efficiency Class | A |
| Noise Level | 63.0 dB |
Programmes
More
Design:
- Canopy hood
- Installation: Cabinet
- Flush-fitted installation for a seamless integration in wall cupboards.
- Suitable for ducted or recirculating operation
- For recirculated extraction various recirculation kits are available as optional accessories.
- 2 x 1W LED
- Colour Temperature: 4000 K
- Light Intensity: 400 lux
- Capacitor motor

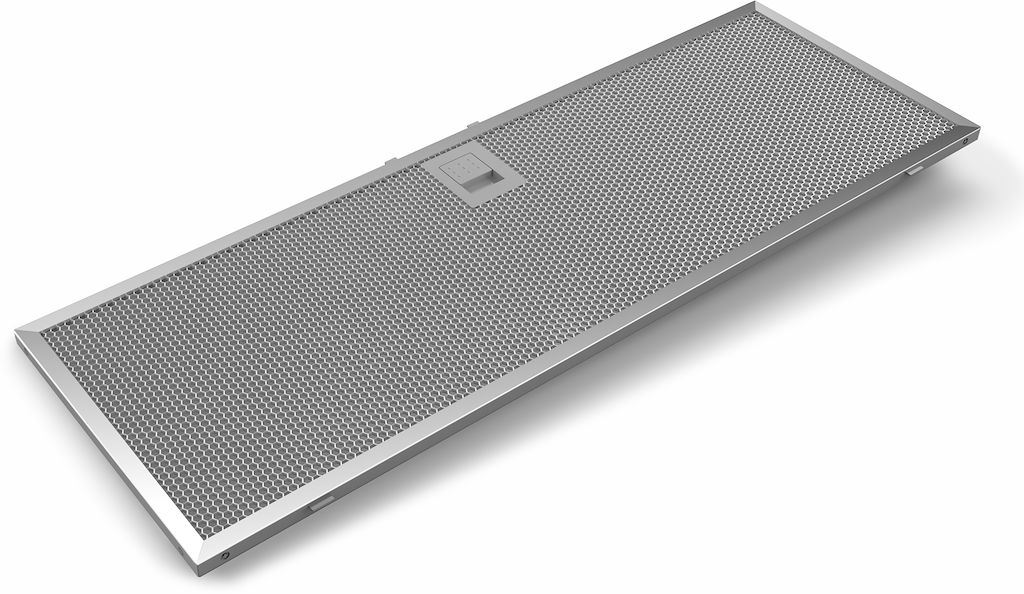

- 2 metal grease filter(s).

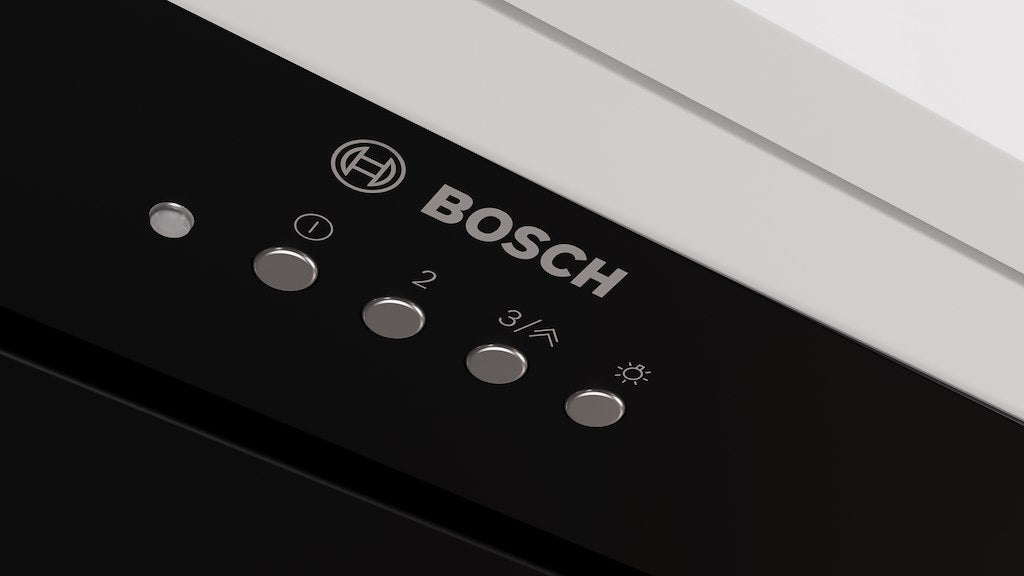

- Soft touch button control with Electronic display
- 3 power levels & intensive setting
- Automatic reset from intensive to normal setting after 6 min
- Removable metal grease filters dishwasher-safe
- Easy to clean smooth surfaces and materials.
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode: Speed 1: extraction rate 270 m3/h; noise level 45 dB (A) re1pW Speed 2: extraction rate 400 m3/h; noise level 53 dB (A) re1pW Speed 3: extraction rate 595 m3/h; noise level 63 dB (A) re1pW Intensive 1: extraction rate 730 m3/h; noise level 68 dB (A) re1pW
- Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 55.5 kWh/year*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with standard recirculation kit (available as optional accessory): Speed 1: extraction rate 250 m3/h; noise level 65 dB (A) re1pW Speed 2: extraction rate 350 m3/h; noise level 71 dB (A) re1pW) Speed 3: extraction rate 400 m3/h ; noise level 74 dB (A) re1pW) Intensive Speed 1: extraction rate430 m3/h; noise level 75 dB (A) re1pW)
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with Clean Air plus recirculation kit, for chimless installation (available as optional accessory): Speed 1: extraction rate 260 m3/h ; noise level 53 dB (A) re1pW Speed 2: extraction rate 385 m3/h ; noise level 71 dB (A) re1pW) Speed 3: extraction rate 580 m3/h ; noise level 70 dB A) re1pW) Intensive Speed 1: extraction rate 705 m3/h ; noise level 73 dB (A) re1pW)
- Consumption data:
- Power rating: 252 W
- Voltage: Nominal voltage: 220 - 240 V
- Sustainability:
- Environmentally friendly packaging
- Available odour filter as regenerative Long Life filter with 10 years lifetime
- Dimensions (HxWxD): 345 x 700 x 282 mm
- Dimensions recirculating (HxWxD): 345-345 x 700 x 282 mm
- Built-in dimensions (HxWxD): 345 x 676 x 264 mm
- Please reference the built-in dimensions provided in the installation drawings
- Electrical cable length 1.5 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Back-pressure flap: Yes
